• Air conditioning, single-zone manual
• Assist handle, front passenger
• Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers
• Defogger, side windows
• Floor covering, full-length Black rubberized-vinyl (Not available with (YF2) Ambulance Package or (RFM) rear floor covering delete.)
• Headliner, cloth, over driver and passenger
• Lighting, interior with 2 dome lights, defeat switch and door handle-activated switches
• Oil life monitor
• Seating arrangement, driver and front passenger high-back buckets, adjustable with head restraints and vinyl or cloth trim
• Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
• Theft-deterrent system, vehicle, PASS-Key III
• Tow/haul mode selector, instrument panel-mounted
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition

• Alternator, 105 amps (Not available with **13405 models.)
• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, full-length box ladder-type
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar (Requires *G***05 models.)
• Suspension, rear hypoid drive axle with multi-leaf springs

• Air bag deactivation switch, frontal, passenger-side (Requires (C6P) 8600 lbs. (3901 kg) GVWR or (C6Y) 9600 lbs. (4354 kg) GVWR. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. Always use safety belts and the correct child restraints for your child's age and size. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Daytime Running Lamps
• Door beams, steel-side
• Tire Pressure Monitoring System (does not apply to spare tire)

Cold Climate Package

Engine Block Heater

Preferred Equipment Group

Standard Equipment

Trailering Equipment, Heavy-Duty

Trailering Hitch Platform And 7-Pin Sealed Connector

Additional Packages

Air Bag Frontal Driver-Side Only (Deletes Passenger-Side)Air Conditioning Single-Zone Manual (Std)Audio System Am/Fm Stereo With Seek-And-Scan Digital Clock And 2 Front Door SpeakersBody Standard (Std)Console Engine Cover With Swing-Out Storage BinConvenience Package Power Windows And Door LocksConvenience Package Tilt-Wheel And Cruise ControlCruise ControlDifferential Heavy-Duty Locking RearDoor Locks Power With Lock-Out ProtectionDoor Swing-Out Passenger-Side 60/40 Split (Std)Engine Block HeaterEngine Vortec 6.0L V8 Sfi Flexfuel (323 Hp @ 4600 Rpm 373 Lb-Ft Of Torque @ 4400 Rpm)Glass Fixed Rear DoorsGlass Fixed Rear Doors WindowsMedium Pewter Custom Cloth Seat TrimMirror Inside Rearview Manual Day/NightPaint SolidRear Axle 3.42 RatioRemote Keyless Entry With 2 Transmitters And Remote Panic ButtonSeating Arrangement Driver And Front Passenger High-Back Buckets Adjustable With Head Restraints And Vinyl Or Cloth Trim (Std)Seats Front Bucket With Custom Cloth Trim Head Restraints And Inboard ArmrestsSummit WhiteTire Spare Lt245/75R16e All-Season Blackwall Located At Rear Underbody Of Vehicle (Std)Trailer Wiring 7-Pin Sealed ConnectorTransmission 6-Speed Automatic Heavy-Duty Electronically Controlled With Overdrive Tow/Haul Mode And Internal Transmission Oil Cooler (Std)Trim Panels Hinged Rear Side Doors And Hinged Rear Doors (Std)Windows Power (Included And Only Available With (Zq2) Convenience Package.)

• Aluminum Wheels
• Anti Lock Brakes
• Air Conditioning
• Traction Control
• Tilt Wheel
• Power Windows
• Cruise Control
• Keyless Entry System
• AM-FM Radio
• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• REAR AXLE 3.42 RATIO
• AUDIO SYSTEM AM/FM STEREO with seek-and-scan digital clock and 2 front door speakers
• CRUISE CONTROL
• COLD CLIMATE PACKAGE includes engine block heater
• TRAILERING EQUIPMENT HEAVY-DUTY includes trailering hitch platform and 7-pin sealed connector
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive tow/haul mode and internal transmission oil cooler (STD)
• ENGINE BLOCK HEATER
• ENGINE VORTEC 6.0L V8 SFI FLEXFUEL (323 hp @ 4600 rpm 373 lb-ft of torque @ 4400 rpm)
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS ADJUSTABLE with head restraints and vinyl or cloth trim (STD)
• CONVENIENCE PACKAGE TILT-WHEEL AND CRUISE CONTROL
• WINDOWS POWER (Included and only available with (ZQ2) Convenience Package.)
• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM head restraints and inboard armrests
• BODY STANDARD (STD)
• PREFERRED EQUIPMENT GROUP includes Standard Equipment
• DOOR SWING-OUT PASSENGER-SIDE 60/40 SPLIT (STD)
• TRIM PANELS HINGED REAR SIDE DOORS AND HINGED REAR DOORS (STD)
• GLASS FIXED REAR DOORS
• REMOTE KEYLESS ENTRY with 2 transmitters and remote panic button
• DOOR LOCKS POWER WITH LOCK-OUT PROTECTION
• PAINT SOLID
• CONVENIENCE PACKAGE POWER WINDOWS AND DOOR LOCKS
• MIRROR INSIDE REARVIEW MANUAL DAY/NIGHT
• GLASS FIXED REAR DOORS WINDOWS
• SUMMIT WHITE
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• TRAILER WIRING 7-PIN SEALED CONNECTOR
• MEDIUM PEWTER CUSTOM CLOTH SEAT TRIM
• TIRE SPARE LT245/75R16E ALL-SEASON BLACKWALL LOCATED AT REAR UNDERBODY OF VEHICLE (STD)
• CONSOLE ENGINE COVER WITH SWING-OUT STORAGE BIN
• AIR BAG FRONTAL DRIVER-SIDE ONLY (deletes passenger-side)
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Intermittent Wipers
• Bucket Seats
• Bucket Seats
• A/C
• Tire Pressure Monitor
• Trip Computer
• Immobilizer
• Power Outlet
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag On/Off Switch
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Cargo Area Dimensions
• Cargo Area Length : Floor to Console (in)
• Cargo Area Length : Floor to Seat 1 (in)
• Cargo Area Width : Beltline (in)
• Cargo Box (Area) Height (in): 51.9
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 225.1
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Doors
• Side Door Type: Swing-out
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 105
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Ground Clearance, Front (in): 8.6
• Ground Clearance, Rear (in): 7.6
• Ground to Top of Load Floor (in): 27.7
• Height, Overall (in): 81.6
• Length, Overall w/rear bumper (in): 224.1
• Overhang, Front (in): 39.7
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Side Door Opening Width (in): 44.1
• Step Up Height - Front (in): 20.1
• Step Up Height - Side (in): 20.9
• Wheelbase (in): 135.0
• Width, Max w/o mirrors (in): 79.4
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: LH Midship Inboard
• Interior Dimensions
• Front Head Room (in): 40.2
• Front Hip Room (in): 65.5
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Passenger Capacity: 2
• Steering
• Steering Ratio (:1), At Lock: 17.2
• Steering Ratio (:1), On Center: 17.2
• Steering Type: Pwr-Assisted
• Turning Diameter - Curb to Curb (ft): 49.2
• Summary
• Body Code: ZW9
• Body Style: 3500 Cargo Van 135" WB

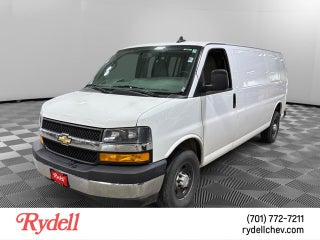

• Vehicle Name: Chevrolet Express Cargo Van
• Suspension
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 6084
• Stabilizer Bar Diameter - Front (in): 1.38
• Suspension Type - Front: Independent
• Suspension Type - Rear: Hypoid Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 2205
• Front Tire Order Code: XHH
• Front Tire Size: LT245/75R16E
• Rear Tire Capacity (lbs): 3042
• Rear Tire Order Code: YHH
• Rear Tire Size: LT245/75R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: ZHH
• Spare Tire Size: LT245/75R16E
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Maximum Trailering Capacity (lbs): 10000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10000
• Vehicle
• Rear Door Type: Dual Swing-out
• Weight Information
• Curb Weight - Front (lbs): 2918
• Curb Weight - Rear (lbs): 2192
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 6084
• Gross Combined Wt Rating (lbs): 16000
• Gross Vehicle Weight Rating Cap (lbs): 9600
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 16 x 6.5
